SCADA Design Sample Toolkit

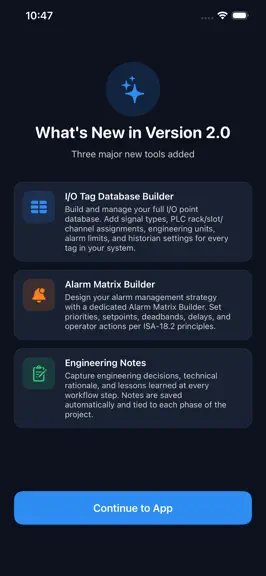

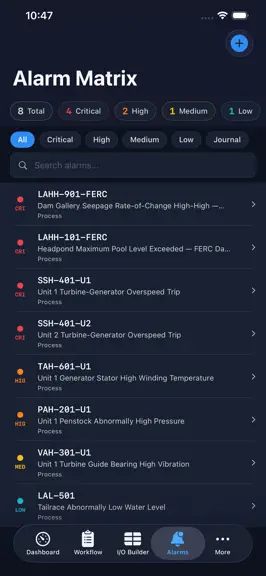

Version 2.0 adds three major new engineering tools. I/O Tag Database Builder: Build and manage a complete I/O point database for your project. Add every signal type with PLC address, engineering units, alarm limits, historian settings, and field device notes. Searchable and filterable by signal type. Alarm Matrix Builder: Design your alarm management strategy per ISA-18.2. Define priorities, setpoints, deadbands, delays, operator actions, and shelving permissions for every alarm in your system. Engineering Notes: Capture technical decisions and lessons learned at every step of the 17-phase workflow. Notes are saved automatically and tied to each phase of the project.
